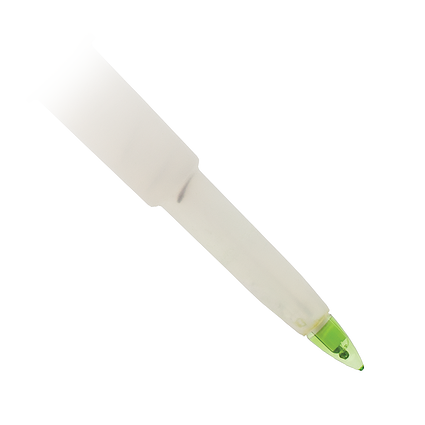

Wireless pH Meter Foodcare HALO® - FC2022

The FC2022 HALO® Wireless Foodcare pH Meter incorporates Bluetooth® Smart technology with an application-specific design to test pH levels of food. There are several features that make it ideal for measuring the pH of food products.

Low Temperature Glass Formulation

Low Temperature (LT) glass Low-temperature glass for fast stabilization and more accurate results at lower temperatures. This is beneficial since many food products are stored at low temperatures.

Built-In Temperature Sensor

FC2022 features a built-in temperature sensor for temperature measurement and compensation.

Open Junction Reference

The open junction design consists of a solid gel interface (viscolene) between the sample and internal Ag/AgCl reference. This interface not only prevents silver from entering the sample, but also makes it impermeable to clogging, resulting in a fast response and stable reading.

Real-Time Data

Display of pH and temperature updated every second. Readings are automatically saved to a history file every hour, limited only by the available memory on the device.

Fluid, Dynamic Graphing

Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with pinch-to-zoom technology for enhanced viewing.

GLP (Good Laboratory Practice)

Displays date and time of current calibration, offset, and average slope, along with calibrated buffers, mV values, temperature and slopes between each buffer.

Calibration Reminder & Measurement Alarms

The Hanna Lab App alerts you when HALO needs calibration or if a measurement threshold is exceeded.

Log & Share Data

Saved log files may be annotated with measurement-specific information. Data is easily shared via email in CSV format.

Help & Tutorials

Demo mode helps you explore the features of the Hanna Lab App. General app information, HALO information, pH tutorial, maintenance tutorial, and contact information are available in help.

HALO^® Features/Benefits

Connects to Hanna Lab App with a compatible Apple or Android Device via Bluetooth Smart Technology (Bluetooth 4.0) Up to five-point pH calibration with seven standard pH buffers available Calibration reminder

• Alerts you when HALO needs calibration
• Appropriate preprogrammed calibration buffer set for application specific Halo pH electrodes

Real-time data

• Displays pH and temperature updated every second

Basic Good Laboratory Practice (GLP)

• Displays date and time of current calibration along with offset and average slope

Full GLP

• Displays date and time of current calibration, offset and average slope along with calibrated buffers, mV values, temperature and slopes between each buffer

• Fluid, dynamic graphing

  • Measurement can be displayed with tabulated data or as a graph. The graph axes may be expanded using pinch-to-zoom technology for enhanced viewing.

Measurement alarms

• Alerts you if the measurement threshold is exceeded

One button sample tagging

• • Pressing either the icon in the Hanna Lab App or button on the HALO will tag sample data for easy reference

Data logging with custom annotations

• Saved log files may be annotated with measurement specific information
• Data is autosaved every hour

Four ways to save and share data:

• All data since last autosave
• Annotations only
• All data within a timed interval
• Annotations only within a timed interval
• Share data via email in CSV format

Help and tutorials:

• Demo mode to help explore features of the Hanna Lab App
• General app information
• General HALO information
• pH tutorial
• Maintenance tutorial
• Contact information

HALO^® is compatible with the following devices:

Android

Compatible with most devices equipped with Bluetooth Smart Technology (Bluetooth 4.0) and running Android 4.3 or later.

iOS

iPad (3rd generation or newer) iPhone (4S or newer) iPod Touch (5th generation or newer)

Specifications
