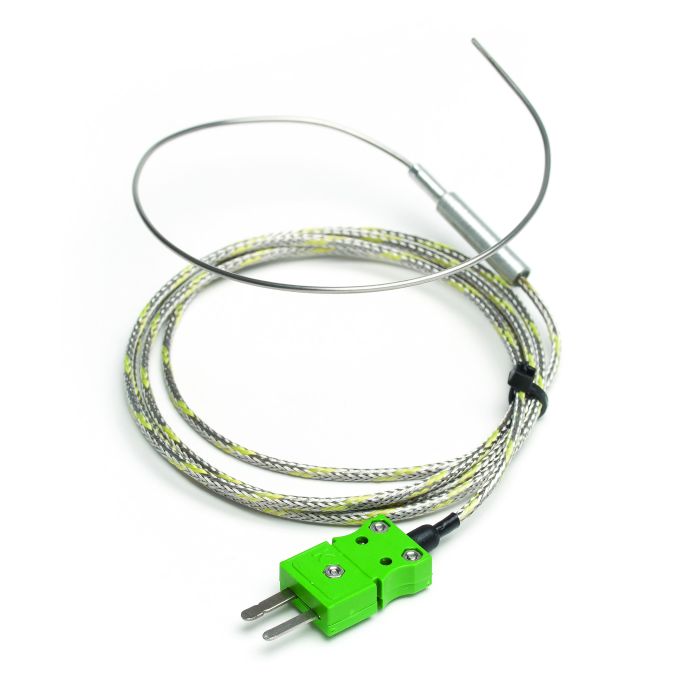

The HI766F is a K-type thermocouple probe with a flexible sheath designed for use with a thermocouple thermometer. A cable extends 1 m (3.3') from the end of the sensor to the thermocouple connector with the meter; the HI766F does not incorporate a handle. The pliable stainless steel probe allows users to obtain highly accurate readings of a variety of high-temperature surfaces.
The Flexible High Temperature K-Type Thermocouple Probe - HI766F is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766F flexible sheath construction offers a speedy 4-second response for a temperature reading. With a strong, corrosion-resistant, AISI 316 stainless steel construction, this probe is able to measure extremely hot surfaces up to 1100°C (2000°F).
Specifications
Body Material
stainless steel
Length
L 255 mm x dia 1.5 mm (10" x 0.06")
Recommended Operating Temperature
1100°C (2000°F)
Response Time(90% of final value)
3 sec
Temperature Sensor
Yes
Cable
fibre glass with stainless steel overbraid/straight; 1 m (3.3')
Connection
K-type
Recomanded
use high temperatures
