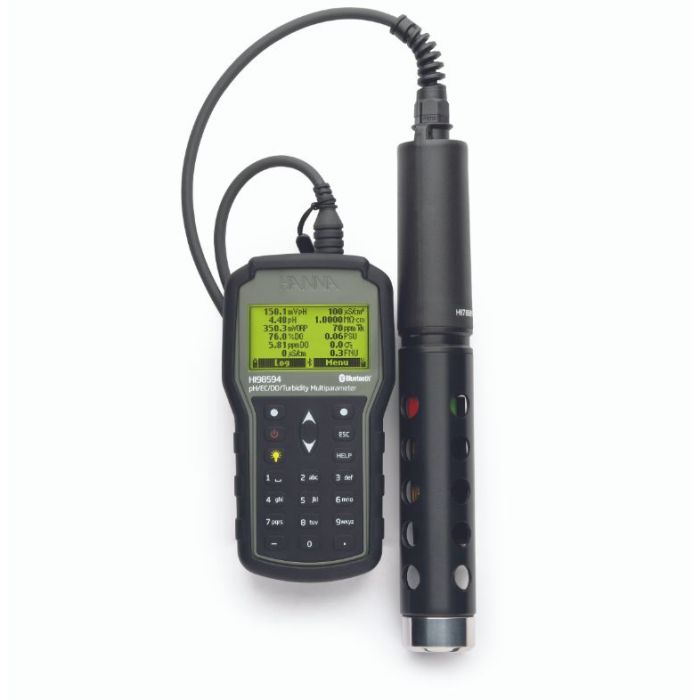

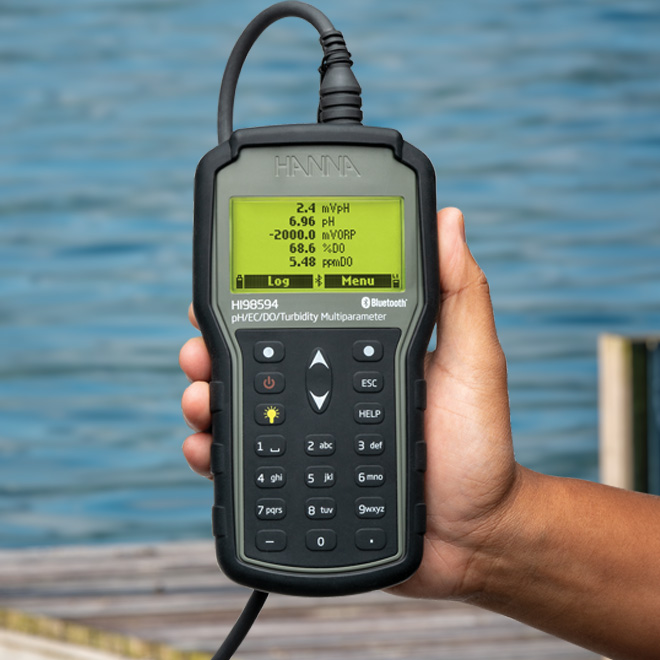

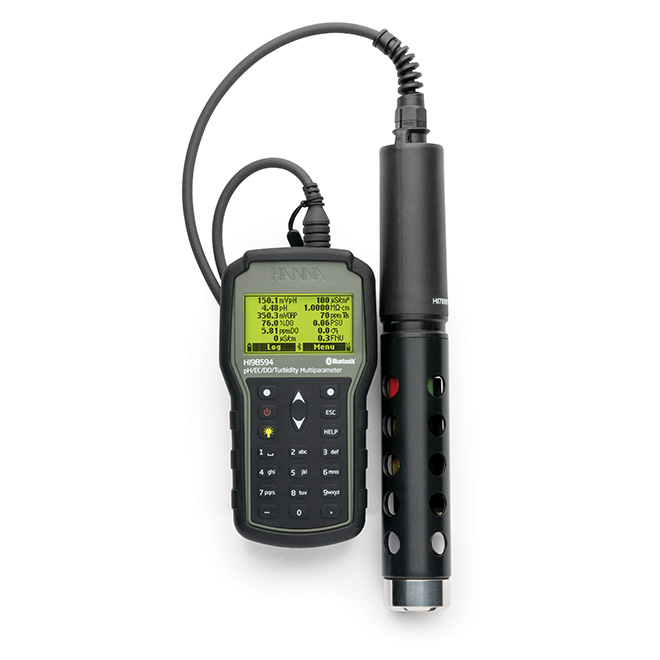

Portable multiparametric meter for pH/EC/Turbidity/OPDO® with Bluetooth® - HI98594
The HI98594 is a portable multiparameter device designed to monitor up to 14 key water quality parameters. Equipped with a multisensor probe, it allows precise measurement of pH/ORP, conductivity (EC), turbidity, dissolved oxygen (DO), and temperature. Data recorded on the device can be transferred via Bluetooth® to a device with the free Hanna Lab app installed. The HI98594 comes with all necessary accessories in a sturdy carrying case for field transport and use.
- New combined EC/Turbidity sensor
- Bluetooth® 5.0 technology with Hanna Lab and Hanna Cloud connectivity
- OPDO®: Optical dissolved oxygen sensor
- Displays up to 12 parameters simultaneously
Precision in Your Hands
Reliable Water Analysis Anywhere You Are
The HI98594 is designed to withstand harsh environmental conditions, making it the ideal tool for field analysis. Thanks to its combined EC/turbidity sensor, the HI98594 not only measures up to 14 parameters but also introduces innovative technology that sets a new standard in Hanna Instruments' multiparameter range.
The device is IP67 certified, ensuring protection against temporary immersion up to 1 meter for 30 minutes. The multisensor probe, on the other hand, is completely sealed and meets IP68 standards, making it suitable for continuous immersion.
This instrument is perfect for a wide range of applications, including the analysis of surface, marine, wastewater, and groundwater, as well as aquaculture, research, and environmental remediation. With the HI98594, you’ll always have reliability and precision at your fingertips.
Measures 14 Parameters
The HI98594 can measure 14 essential water analysis parameters:
•pH •mV •ORP •DO (ppm) •DO (%) •EC •Absolute EC •Resistivity •TDS •Salinity •Seawater σ •Turbidity •Atmospheric Pressure •Temperature
The HI98594 allows users to display between 1 and 12 parameters simultaneously, which can be configured to their preferences. Its readings are easily legible even in challenging environments, such as under direct sunlight, thanks to the backlit screen that ensures optimal visibility in all conditions.
Multi-Sensor Probe
The HI7698594 multi-sensor probe is designed for innovation and convenience, simplifying use and optimizing performance. It features three threaded connectors, each with color-coded identification for automatic and immediate sensor recognition.
The probe comes with a protective cap, and its waterproof design makes it ideal for use in harsh environments.
Optical Dissolved Oxygen Sensor
HI7698594-5
- No Frequent Calibration Required
- Fast Readings and Optimal Stability
- High Accuracy at Low Oxygen Levels
- Perfect for Challenging Applications
Combined EC/Turbidity Sensor
HI7698594-4
- Four-Ring EC Sensor
- Turbidity Sensor Compliant with ISO 7027 Standards
- Turbidity Range: 0.0 to 1000 FNU
Combined pH/ORP Sensor
HI7698194-1
- pH Sensor with PEI Body and Glass Tip
- Platinum Sensor for ORP
- Double Junction with KCl Gel Electrolyte
Maximum Precision Wherever You Go
The HI98594, with its compact design, is easily portable and simple to use, even in the most challenging environments. It comes with a durable carrying case designed to withstand wear and provide maximum protection. The interior of the case is thermoformed to securely hold and protect all the instrument's components, ensuring their integrity during transport.
Quick-DIN Connection
The instrument connects to the multi-sensor probe via a single waterproof Quick-DIN connector, enabling quick and easy attachment and detachment. Once connected, the probe is automatically detected by the device.
Data Transfer and Charging
The USB-C port simplifies data transfer to USB drives, PCs, or other compatible devices and is also used to recharge the internal lithium battery.
Dual Power Supply
The HI98594 operates with an integrated rechargeable lithium battery. When the battery charge is low, the device automatically switches to 1.5V AA alkaline batteries, ensuring uninterrupted operation in any situation.
Smarter Water Analysis
Bluetooth® 5.0 Connectivity and Hanna Lab
Using the Bluetooth connection and the Hanna Lab app, data batches can be easily transferred to a smart device, viewed, or shared via email. Automatic firmware updates for the instrument are also done through the Hanna Lab app.
Hanna Cloud
Hanna Cloud is a free service offered with the HI98594: it is a web application connected to the Hanna Lab app.
The service allows you to:
- Save data for easy access from remote PCs, tablets, or smartphones.
- Set measurement units for each parameter.
- View data in table format for all measured parameters.
- Display up to 4 parameter graphs simultaneously.
Specifications
| Parameter | Characteristic | Specification |
| pH / mV | Range | 0.00 to 14.00 pH* / ±600.0 mV |
| Resolution | 0.01 pH / 0.1 mV | |
| Accuracy | ±0.02 pH / ±1.2 mV | |
| Calibration | 1 point with HI9828-25 Quick Calibration solution. Up to 3 points with standard or customizable values. | |
| ORP | Range | ±2000.0 mV |
| Resolution | 0.1 mV | |
| Accuracy | ±1.0 mV | |
| Calibration | Automatic to a customizable value (relative mV) | |
| Dissolved Oxygen | Range | 0.0 to 500.0 % saturation; 0.00 to 50.00 ppm (mg/L) |
| Resolution | 0.1 % saturation; 0.01 ppm (mg/L) | |
| Accuracy | ±1.5 % (from 0.0 to 200.0 % saturation), ±5 % (over 200.0 % saturation) | |
| Calibration | 1 point with quick calibration in saturated air or customizable solutions. | |
| Pressure Compensation | Automatic (450 to 850 mmHg) | |
| EC (Conductivity) | Range | 0 to 200 mS/cm; 0 to 400 mS/cm (absolute) |
| Resolution | Automatic or manual depending on the scale | |
| Accuracy | ±1 % of the reading or ±1 μS/cm, whichever is greater | |
| Calibration | Standard or customizable solutions with HI9828-20 | |
| Resistivity | Range | 0 to 999999 Ω·cm; up to 1.0000 MΩ·cm |
| Resolution | 1 Ω·cm; 0.1 kΩ·cm; 0.0001 MΩ·cm | |
| Calibration | Based on conductivity calibration | |
| TDS | Range | 0 to 400,000 ppm (mg/L) |
| Resolution | Manual or automatic depending on the scale | |
| Accuracy | ±1 % of the reading or ±1 ppm (mg/L), whichever is greater | |
| Calibration | Based on conductivity or salinity calibration | |
| Salinity | Range | 0.00 to 70.00 PSU |
| Resolution | 0.01 PSU | |
| Accuracy | ±2 % of the reading or ±0.01 PSU, whichever is greater | |
| Calibration | 1 point, using a customizable solution | |
| Seawater Sigma | Range | 0.0 to 50.0 σt, σ₀, σ₁₅ |
| Resolution | 0.1 σt, σ₀, σ₁₅ | |
| Accuracy | ±1.0 σt, σ₀, σ₁₅ | |
| Calibration | Based on conductivity or salinity calibration | |
| Turbidity | Range | 0.0 to 99.9 FNU; 100 to 1000 FNU |
| Resolution | 0.1 FNU (up to 99.9 FNU); 1 FNU (over 100 FNU) | |
| Accuracy | ±0.3 FNU or ±2 % of the reading, whichever is greater | |
| Calibration | Automatic, up to three points | |
| Atmospheric Pressure | Range | 450.0 to 850.0 mmHg; other units included (inHg, mbar, psi, atm, kPa) |
| Resolution | 0.1 mmHg; other resolutions based on the unit | |
| Accuracy | ±3.0 mmHg within ±15 °C from temperature calibration | |
| Calibration | Automatic to a customizable point | |
| Temperature | Range | −5.00 to 50.00 °C; 23.00 to 122.00 °F; 268.15 to 323.15 K |
| Resolution | 0.01 °C; 0.01 °F; 0.01 K | |
| Accuracy | ±0.15 °C; ±0.27 °F; ±0.15 K | |
| Calibration | Automatic to a customizable point |
