pH/ORP/ISE Analysis Module for the HI6000 Modular Series

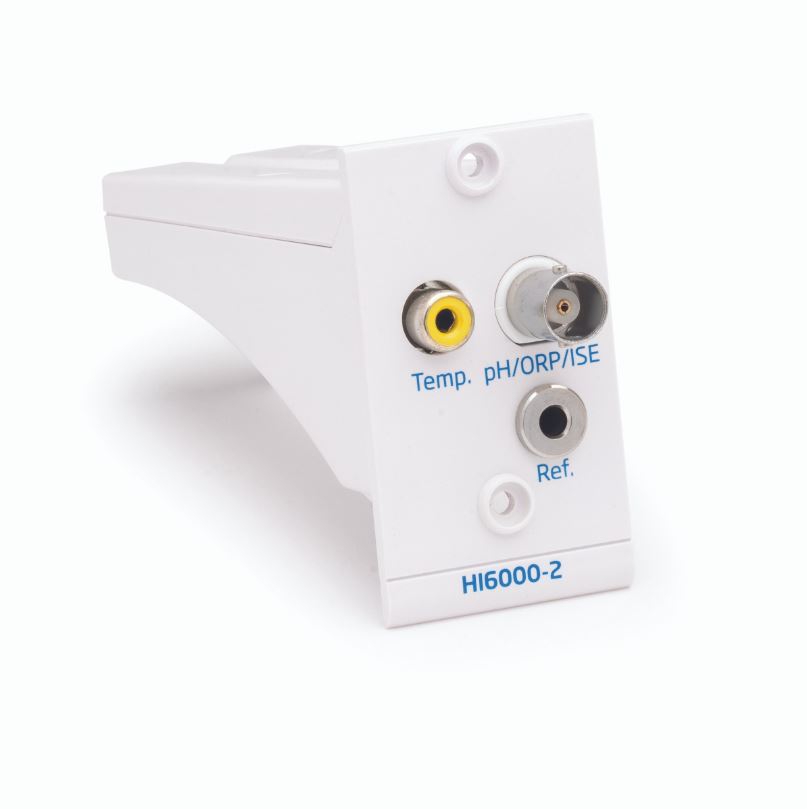

The HI6000-2 is an innovative hardware module designed for the HI6000 multiparameter modular benchtop instrument. This module allows for easy and fast pH/ORP and ISE analysis, making it ideal for laboratory technicians, industry professionals, and academics. Thanks to its intuitive design, the module installs easily into the dedicated slot behind the instrument, requiring no further configuration. Once inserted, the HI6000-2 is automatically recognized by the system, enabling immediate analysis.
- pH/ORP
- ISE
- Temperature
Module Installation
Installing the modules for the HI6000-2 system is simple and safe. Just disconnect the device from the power supply, remove the mounting screws, and insert the desired module into the housing. Once the locking mechanism clicks into place, the module is securely installed and ready for analysis. To protect any unused housings, it is recommended to use the empty covers provided.
Measurement
Choose the unit of measurement:
- pH: pH, mV
- ORP: mV, Rel.mV
- ISE: ppt, ppm, ppb, g/L, mg/L, μg/L, mg/mL, μg/mL, M, mol/L, mmol/L, %w/v (user-defined)
Reading Modes
- Direct and indirect/Autohold
- For ISE: Addition Note, Subtraction Note, Addition of Analyte, Subtraction of Analyte
Calibration
pH Calibration using:
- Up to 5 points with Hanna Instruments and NIST buffers (pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45)
Up to 5 custom buffers - mV calibration using a single point to calibrate the offset
- ISE calibration using up to 5 points with nominal standard values and/or up to five custom solutions (provided by the user)
Recommended Probes

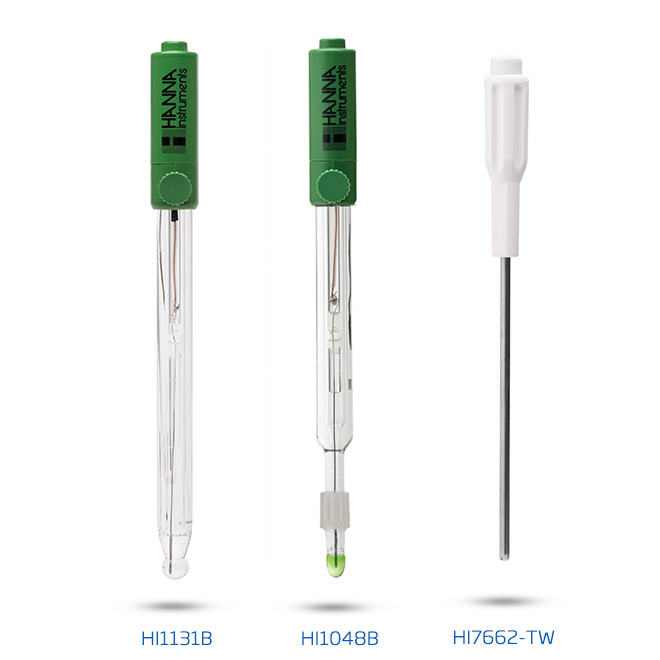

For pH measurements, we recommend the pH electrode HI1131B or HI1048B, along with the HI7662-TW temperature probe to be used with these modules.
- HI1131B is designed to provide reliable results across a wide range of laboratory applications. The high-temperature resistant glass body and spherical tip ensure optimal contact with the sample.
- HI1048B is designed for a wide range of laboratory applications with difficult samples, featuring the CPS system to prevent junction blockages.
- HI7662-TW The stainless steel temperature probe allows the meter to automatically compensate pH measurements based on temperature (ATC).
ISE Electrode Measurements
Ion-selective electrodes (ISE) are advanced sensors designed to directly measure the concentration of specific ions present in a solution, ensuring precise and reliable analysis.
The HI6000-2 module supports the use of ISE electrodes, allowing for detailed and customized analysis across a broad range of chemical and industrial applications. Additionally, the module also offers incremental ISE methods, such as Addition Note, Subtraction Note, Addition of Analyte, and Subtraction of Analyte, further enhancing the precision and flexibility of the analyses.

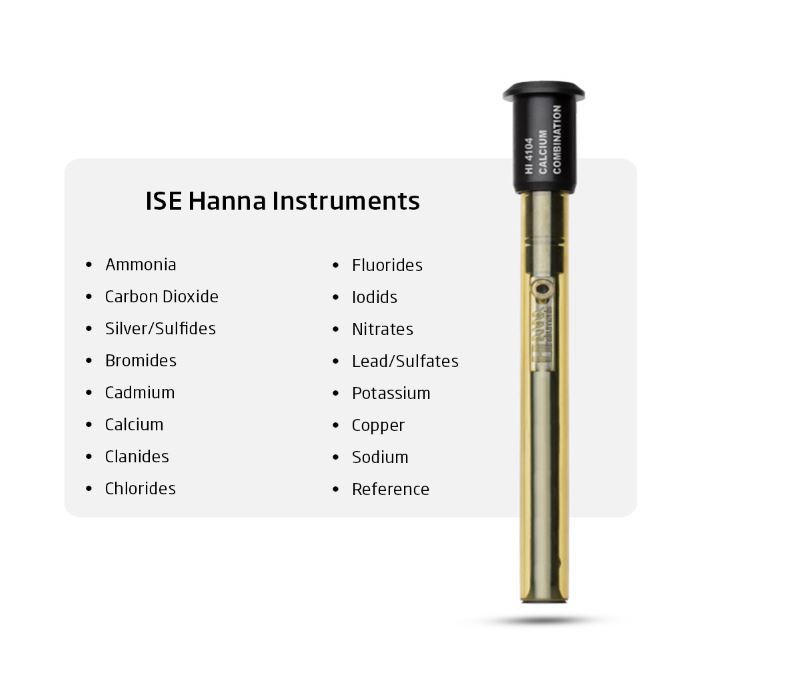

Hanna Instruments offers a wide range of ISE electrodes, ensuring the ideal solution for every type of ionic measurement.
Specifications
| Technical Specifications | Description | |
| pH | Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | |
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | |
| Temperature Compensation | Automatic or manual | |
| Calibration Points | Up to 5 | |
| Calibration Type | Automatic; Semi-automatic; Manual | |
| Standard Buffers | Hanna and NIST pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 | |
| Custom Buffers | Up to 5 | |
| Buffer Group | Up to 5 | |
| 1st Calibration Point | Offset or point (User settings) | |
| Isoelectrical Point | -2.000 to 20.000 pH | |
| mV | Range | -2000.0 mV to 2000.0 mV |
| Resolution | 1 mV; 0.1 mV | |
| Accuracy | ±0.2 mV ±1 last significant digit | |
| Calibration | Offset to single point, ±2000.0 mV | |
| ISE | Range |
1.0×10⁻⁵ to 300.0 ppt (g/L or mg/mL) 5.0×10⁻³ to 1.0×10⁵ ppm (mg/L or µg/mL) 1.0 to 5.0×10⁷ ppb (µg/L) 1.0×10⁻⁷ to 10.0 M (mol/L) 1.0×10⁻⁴ to 1.0×10⁴ mmol/L 1.0×10⁻⁶ to 60.0 % w/v 5.0×10⁻⁷ to 5.0×10⁷ |
| Resolution | 1, 2, 3 significant digits | |
| Accuracy | ±0.5% (Monovalent Ions); ±1% (Divalent Ions) | |
| Calibration Points | Up to 5 | |
| Calibration Type | All standards | |
| Standard Buffer Groups | 7 standard solutions available for each concentration unit | |
| Custom Buffers | Up to 5 | |
| Buffer Group | Up to 5 | |
| Temperature | Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.2 to 393.2 K |
| Resolution | 0.1 °C; 0.1 °F; 0.1 K | |
| Accuracy | ±0.2 °C; ±0.4 °F; ±0.2 K | |
| Calibration | Single point or adjustable |
