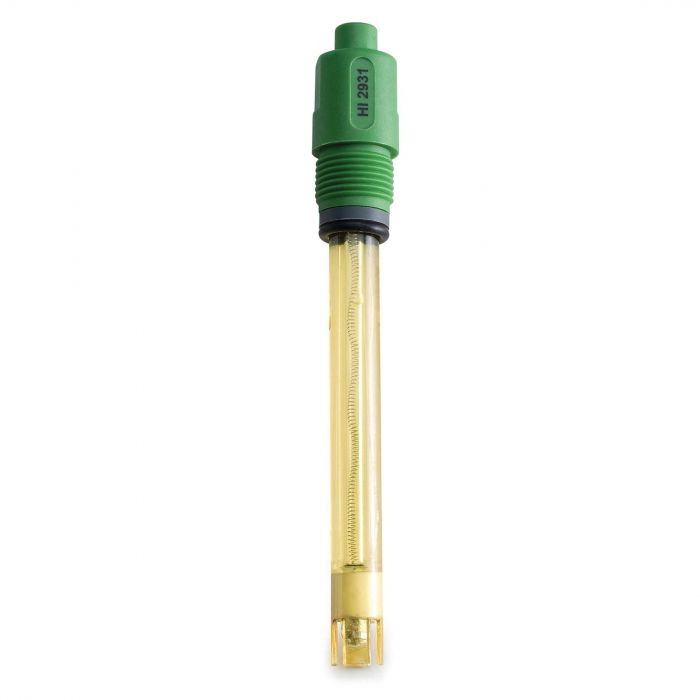

ORP Electrode with Internal Battery (5m cable) AmpHel®- HI2931B/5
This amplified ORP electrode with an internal battery is designed for industrial applications with features such as a PTFE junction and a platinum sensor. With it's durable design, you can count on this electrode to stand up to your process environment.
- AmpHel® ORP electrodes with internal battery.
- Ideal for measurements in unclean samples and high humidity conditions.
- Built for everyday, demanding use in industrial applications.
Amplified ORP electrode
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
Platinum sensor
It provides the best response over a wide range of applications.
BNC connector
It allows for a quick and easy connection to any pH/ORP meter or transmitter.
Incorporated amplifier
It provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs.
AmpHel® replaceable battery
No longer necessary to throw away an electrode when the battery is exhausted for longer electrode life.
Specifications
|
Body Material |
PEI |
|
Junction/Flow rate |
PTFE |
|
Electrolyte |
Gel |
|
Max. pressure |
3 bar (43.5 psi) |
|
Tip shape |
platinum |
|
Length |
148.5mm |
|
Temperature sensor |
No |
|
Matching Pin |
No |
|
Amplifier |
Yes |
|
Cable |
5 m |
|
Connection |
BNC |
|
Applications |
industrial, general-purpose |
