Nitrate Half-Cell Ion Selective Electrode (ISE) - HI4013

Name: Nitrate Half-Cell Ion Selective Electrode (ISE) - HI4013
SKU: HI4013
Price: 937.00 EUR

€937.00

In stock

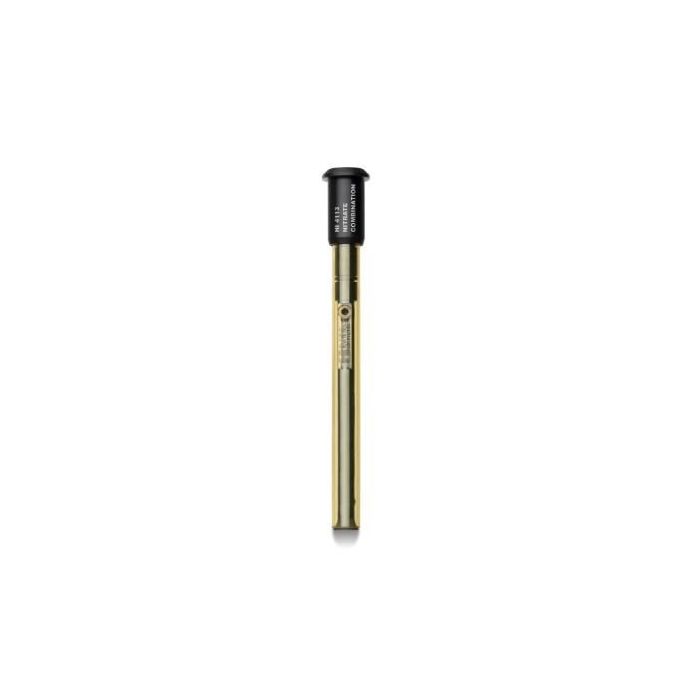

The HI4013 is a liquid membrane, half-cell ion selective electrode (ISE) for the determination of nitrate (NO₃^-) in solution. The PVC membrane comprised with organic ion exchanger produces a potential change due to the nitrate ion exchange between the organic polymer membrane and the sample. The internal sensing elements are housed within a durable epoxy body. The HI4013 is ideal for a variety of applications in the food industry, agriculture, and water analysis.

Liquid membrane sensor
Detection from 0.62 to 6,200 mg/L NO₃^-
For use with HI5315 reference half-cell

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Hanna’s liquid membrane half-cell ISEs are designed for use with the HI5315 reference half-cell. The reference half-cell features a cone style junction. The skirted cone geometry of the sensor forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary.For the HI4013 to measure nitrate accurately, it is important that the ionic strength of the standards and sample be adjusted to a high and constant value with the nitrate ionic strength adjuster (ISA) solution. The ISA ensures that the activity coefficient is constant so the concentration of free nitrate ions can be measured. Measuring all solutions with a constant ionic strength reduces the margin of error between measurements. The HI4013 nitrate liquid membrane ISE can measure from 10µM (0.62 mg/L) to 0.1M (6,200 mg/L).Conversion Table for NO₃^-

	Multiply
moles/L (M) to ppm (mg/L)	62000
ppm (mg/L) to M (moles/L)	1.61 x 10^-5

Features at-a-glance

Replaceable Sensing Modules

Half-cell liquid membrane ISEs are electrodes that detect free ions in a solution. This type of ISE is designed to incorporate easy replacement of the sensing module.

Durable Epoxy Body

The probe body of the nitrate half-cell ISE is composed of durable epoxy resin.

BNC Connection

The HI4013 has a universal BNC connector for easy connection to any benchtop meter with a female BNC probe input.

Theory of Operation

A liquid membrane ion selective electrode develops a voltage due to the ion exchange that occurs between the solution and the polymer membrane that contains organic ion exchange resin. When the ionic strength of the solution is fixed by the addition of ISA, the voltage is proportional to the concentration of free ions in solution.

Specifications


SKU	HI4013
Type	polymer membrane; half cell
Measurement Range	1.0M to 1•10-5M 6200 to 0.62 mg/L (ppm) 1400 to 0.4 mg/L (ppm) as N
Optimum pH Range	3.0 to 8
Temperature Range	0 to 40°C
Diameter	12 mm
Length	120 mm
Body Material	epoxy/PVC
Cable	1 m coaxial
Common Applications	determination of free nitrate in natural waters (fresh and sea), and in emulsified food and plant samples
Connection	BNC
