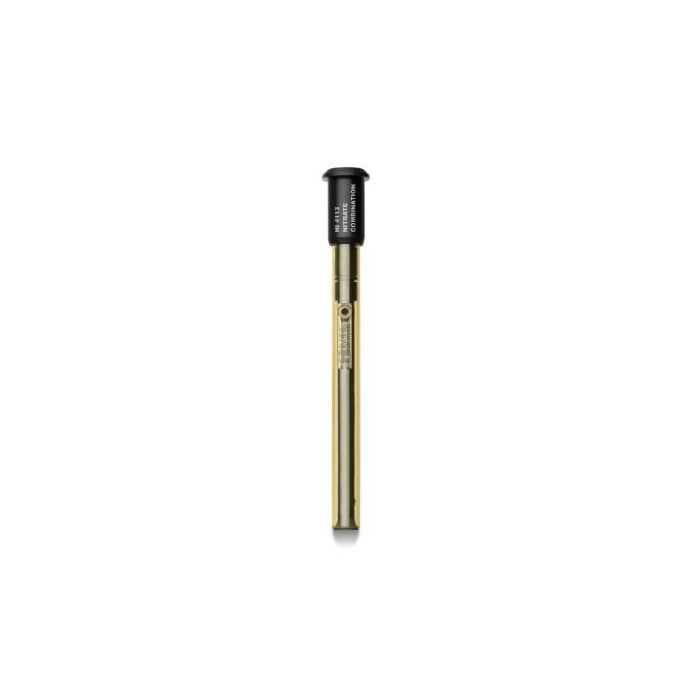

Nitrate Combination Ion Selective Electrode (ISE) - HI4113

Name: Nitrate Combination Ion Selective Electrode (ISE) - HI4113
SKU: HI4113
Price: 1015.00 EUR

€1,015.00

In stock

The HI4113 is a liquid membrane, nitrate combination ion selective electrode (ISE) for the determination of nitrate (NO3-) in solution. The PVC membrane comprised with organic ion exchanger produces a potential change due to the nitrate ion exchange between the organic polymer membrane and the sample. The internal sensing elements are housed within a durable polyetherimide (PEI) body. The HI4113 is ideal for a variety of applications in the food industry, agriculture, and water analysis.

Liquid membrane sensor
Skirted cone geometry
Detection from 0.62 to 6,200 mg/L NO3-

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Hanna’s liquid membrane combination ISEs are designed with a cone style junction. The skirted cone geometry of the sensor forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary.For the HI4113 to measure nitrate accurately, it is important that the ionic strength of the standards and sample be adjusted to a high and constant value with the nitrate ionic strength adjuster (ISA) solution. The ISA ensures that the activity coefficient is constant so the concentration of free nitrate ions can be measured. Measuring all solutions with a constant ionic strength reduces the margin of error between measurements. The HI4113 nitrate liquid membrane ISE can measure from 10µM (0.62 mg/L) to 0.1M (6,200 mg/L).

Conversion Table for NO₃^-

	Multiply
moles/L (M) to ppm (mg/L)	62000
ppm (mg/L) to M (moles/L)	1.61 x 10^-5

Features at-a-glance

Replaceable Sensing Modules

Combination liquid membrane ISEs are electrodes that detect free ions in a solution. This type of ISE is designed to incorporate easy replacement of the sensing module.

Durable PEI Body

The probe body is composed of durable polyetherimide (PEI) plastic.

BNC Connection

The HI4113 has a universal BNC connector for easy connection to any benchtop meter with a female BNC probe input.

Theory of Operation

A liquid membrane ion selective electrode develops a voltage due to the ion exchange that occurs between the solution and the polymer membrane that contains organic ion exchange resin. When the ionic strength of the solution is fixed by the addition of ISA, the voltage is proportional to the concentration of free ions in solution.

Specifications

Specification Name	Detail
SKU	HI4113
Type	polymer membrane; combination
Optimum pH Range	3.0 to 8
Temperature Range	0 to 40°C
Diameter	12 mm
Length	120 mm
Body Material	PEI/PVC
Cable	1 m coaxial
Common Applications	determination of free nitrate in natural waters (fresh and sea), and in emulsified food and plant samples
Connection	BNC
