Module for pH/ORP analysis for the HI6000 series modular
The HI6000-1 is an innovative hardware module designed for the HI6000 multiparameter modular benchtop instrument. This module allows you to make pH and ORP analysis quick and easy, making it easy ideal for laboratory technicians, industry professionals and academics. Thanks to the intuitive design, the module is simply installed in the special compartment behind the instrument, without the need for further configurations. Once inserted, the HI6000-1 comes automatically recognized by the system, allowing immediate analysis.
- pH
- the ORP
- Temperature

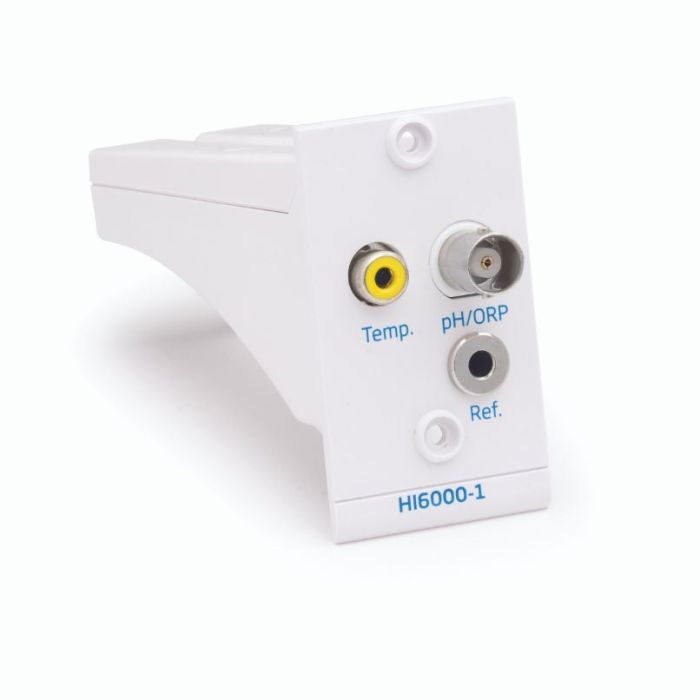

HI6000-1 pH/ORP Module

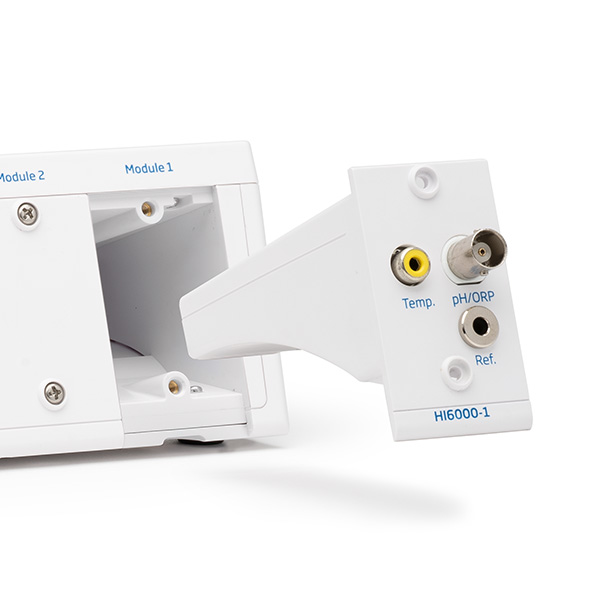

Module Installation
The installation of the modules for the HI6000-1 system is simple and safe. Just disconnect the device from the power supply, remove the mounting screws, and insert the desired module into the housing. Once the locking mechanism clicks into place, the module is securely installed and ready for analysis. To protect any unused housings, it is recommended to use the empty covers provided.
Measurement
Choose the unit of measurement:
- pH: pH, mV
- ORP: mV, Rel.mV
Reading Modes
- Direct and indirect / Autohold
Calibration
Calibration pH using:
- Up to 5 points with Hanna Instruments and NIST buffers (pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, and 12.45)
Up to 5 custom buffers - mV calibration using a single point to calibrate the offset.

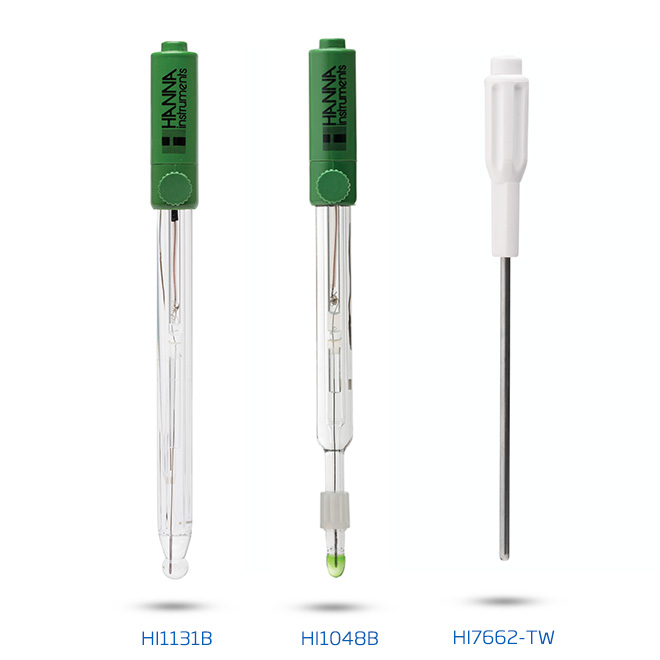

Recommended Probes
For pH measurements, we recommend the pH electrode HI1131B or HI1048B, along with the HI7662-TW temperature probe to be used with these modules.
- HI1131B is designed to provide reliable results across a wide range of laboratory applications. The high-temperature resistant glass body and spherical tip ensure optimal contact with the sample.
- HI1048B is designed for a wide range of laboratory applications with difficult samples, featuring the CPS system to prevent junction blockages.
- HI7662-TW The stainless steel temperature probe allows the meter to automatically compensate pH measurements based on temperature (ATC).
Specifications
| Description | Specification | |
| pH | Range | -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH |
| Resolution | 0.1 pH; 0.01 pH; 0.001 pH | |
| Accuracy | ±0.1 pH; ±0.01 pH; ±0.002 pH (±1 last significant digit) | |
| Temperature Compensation | Automatic or manual | |
| Calibration Points | Up to 5 | |
| Calibration Type | Automatic; Semi-automatic; Manual | |
| Standard Buffers | Hanna and NIST pH 1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 | |
| Custom Buffers | Up to 5 | |
| Buffer Group | Up to 5 | |
| 1st Calibration Point | Offset or point (User settings) | |
| Isoelectrical Point | -2.000 to 20.000 pH | |
| mV | Range | -2000.0 mV to 2000.0 mV |
| Resolution | 1 mV; 0.1 mV | |
| Accuracy | ±0.2 mV ±1 last significant digit | |
| Calibration | Offset to single point, ±2000.0 mV | |
| Temperature | Range | -20.0 to 120.0 °C; -4.0 to 248.0 °F; 253.2 to 393.2 K |
| Resolution | 0.1 °C; 0.1 °F; 0.1 K | |
| Accuracy | ±0.2 °C; ±0.4 °F; ±0.2 K | |
| Calibration | Single point or adjustable |
