SKU
HI7635

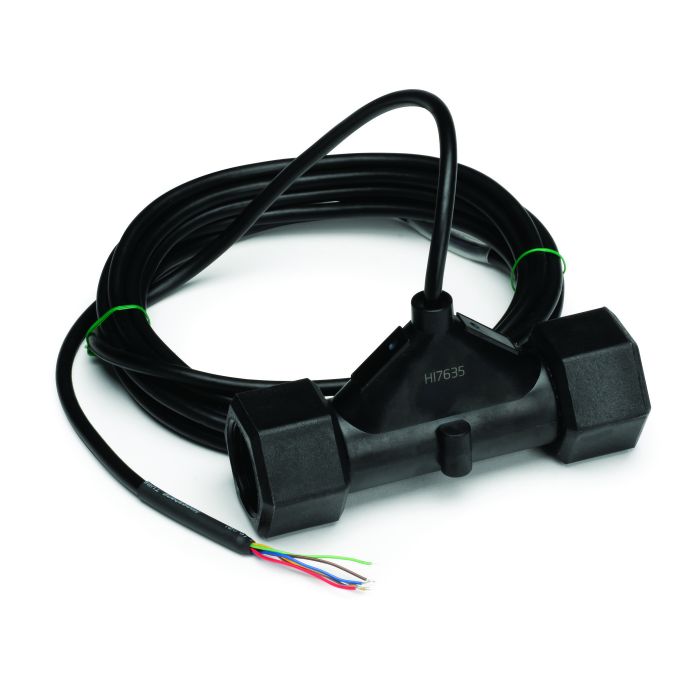

In-line Conductivity Probe - NTC Sensor, 4m Color-coded Cable - HI7635

€169.00
In stock
This four-ring in-line conductivity probe measures in industrial applications with a NTC sensor for Automatic Temperature Compensation. With it's durable design, you can count on this electrode to stand up to your process environment.
  • Uses a 4-ring potentiometric measuring method.
  • Built-in temperature sensor for Automatic Temperature Compensation.
  • Built for everyday, demanding use in industrial applications.

In-line conductivity probe

Suitable for direct immersion in pipes.

Four-ring method

Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.

NTC sensor

Provide accurate and effective temperature compensation.

Color coded wires

4m cable incorporating color coded wires for easy connection to transmitters.

Pipe threads

Constructed as a single piece, molded conductivity probe with pipe threads (1" NPT) at both ends. This allows the probe to attach to an in-line system, and to be used in conjunction with the HI 8936 conductivity transmitter.

Polypropylene body

Rugged, fiber-reinforced polypropylene body for in-line industrial applications.



Specifications



Body Material

Polypropylene

Glass type

(0 to 80°C/ 32 to 176°F)

Temperature Compensation Range

Automatic, 0 to 50°C

Temperature Sensor Type

NTC sensor

Cable

4m

Max. pressure

5 bar (72.5 psi)

Overall Length

142mm

Temperature sensor

Yes

Matching Pin

no

Amplifier

no

Connection

Color coded wires
