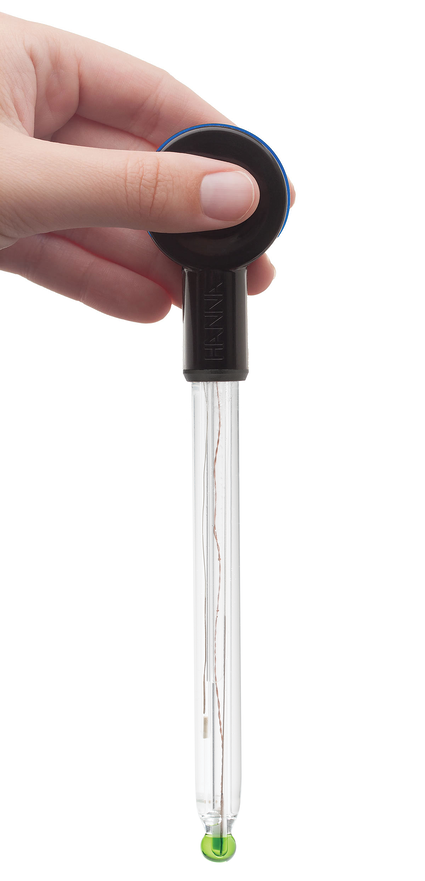

HALO® Wireless Water pH Meter
Our HALO® Wireless Water pH Meter has a glass body, spherical tip, and has a built-in temperature sensor. All readings are transmitted directly to your Apple or Android device or the edge®blu.
- Take laboratory grade pH and temperature measurements using your smart phone or tablet.
- Easily connect to the Hanna Lab App at the press of a button via Bluetooth wireless technology.
- Group your data by time or notation. Email it for storage or share it with friends or colleagues.
The HALO® Wireless Water pH Meter incorporates Bluetooth® Smart technology with an application-specific design. There are several features that make it ideal for measuring the pH of water.
General Purpose Glass Formulation
General Purpose (GP) glass provides the best response over the entire pH range and can be used for a wide range of applications.
Built-In Temperature Sensor
HI10482 features a built-in temperature sensor for temperature measurement and compensation.

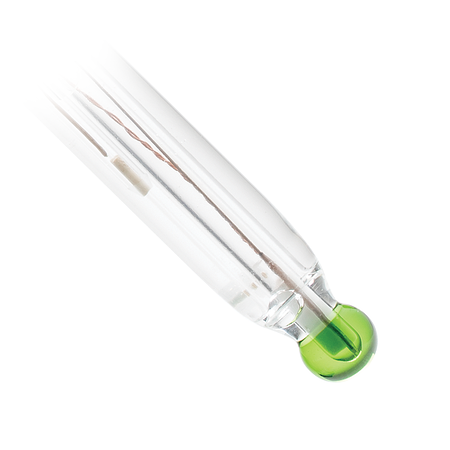

Spheric Glass Tip
The spheric bulb is for general purpose use within laboratory environments and applications that measure aqueous solutions due to its large surface area.
Real-Time Data
Display of pH and temperature updated every second. Readings are automatically saved to a history file every hour, limited only by the available memory on the device.
Fluid, Dynamic Graphing
Measurements can be displayed alone on the display, with tabulated data, or as a graph. The graph can be panned and zoomed with pinch-to-zoom technology for enhanced viewing.
GLP (Good Laboratory Practice)
Displays date and time of current calibration, offset, and average slope, along with calibrated buffers, mV values, temperature and slopes between each buffer.
Calibration Reminder & Measurement Alarms
The Hanna Lab App alerts you when HALO needs calibration or if a measurement threshold is exceeded.
Log & Share Data
Saved log files may be annotated with measurement-specific information. Data is easily shared via email in CSV format.
Help & Tutorials
Demo mode helps you explore features of the Hanna Lab App. General app information, HALO information, pH tutorial, maintenance tutorial, and contact information are available in help.
HALO® Features/Benefits
Connects to Hanna Lab App with a compatible Apple or Android Device via Bluetooth Smart Technology (Bluetooth 4.0)
Up to five-point pH calibration with seven standard pH buffers available
Calibration reminder
- Alerts you when HALO needs calibration
- Appropriate preprogrammed calibration buffer set for application specific Halo pH electrodes
Real-time data
- Displays pH and temperature updated every second
Basic Good Laboratory Practice (GLP)
- Displays date and time of current calibration along with offset and average slope
Full GLP
- Displays date and time of current calibration, offset and average slope along with calibrated buffers, mV values, temperature and slopes between each buffer
Fluid, dynamic graphing
- Measurement can be displayed with tabulated data or as a graph. The graph axes may be expanded using pinch-to-zoom technology for enhanced viewing
Measurement alarms
- Alerts you if the measurement threshold is exceeded
One button sample tagging
- Pressing either the icon in the Hanna Lab App or button on the HALO will tag sample data for easy reference
Data logging with custom annotations
- Saved log files may be annotated with measurement specific information
- Data is autosaved every hour
Four ways to save and share data:
- All data since last autosave
- Annotations only
- All data within a timed interval
- Annotations only within a timed interval
- Share data via email in CSV format
Help and tutorials:
- Demo mode to help explore features of the Hanna Lab App
- General app information
- General HALO information
- pH tutorial
- Maintenance tutorial
- Contact information
HALO® is compatible with the following devices:
Android
Compatible with most devices equipped with Bluetooth Smart Technology (Bluetooth 4.0) and running Android 4.3 or later.
iOS
iPad (3rd generation or newer)
iPhone (4S or newer)
iPod Touch (5th generation or newer)
HI2202 edgeblu Meter
Specifications
| SKU | HI11102 |
|---|---|
| Product Name | HALO Glass Body Gel Filled pH Electrode with Bluetooth® - HI11102 |
| Quote Required | Yes |
| Measurement Range | pH |
| Reference Cell Type | double, Ag/AgCl |
| Junction Type/Flow Rate | ceramic, single |
| Type of Electrolyte | gel |
| Body Material | glass |
| Tip / Shape | spheric |
| Matching Pin | no |
| Max. Pressure | 0.1 bar |
| Temperature Operating Range | -5 to 80°C (23 to 176°F) |
| Body Length/Overall Length | 120 mm / 183 mm |
| Temperature Sensor | yes |
| Outer Diameter | 12 mm |
| Connector Type | Bluetooth Smart (Bluetooth 4.0), 10 m (33') range |
| Battery Type/Life | CR2032 3V lithium ion / approximately 500 hours |
| Amplifier | yes |
| Recommended Use | laboratory general purpose |
| Notes | Environment |
| Range | -2.000 to 16.000 pH / ±800 mV / -20.0 to 120.0 ºC *(will be reduced to actual probe/sensor limits) |
| Resolution | 0.1, 0.01, 0.001 pH / 1, 0.1 mV |
| Accuracy (@25ºC/77ºF) | ±0.005 pH / ±0.3 mV |
| Calibration Points | Up to five points with seven standard buffers |
| Calibration Buffers | 1.68, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH |
| Temperature Compensation | Automatic from -5.0 to 100.0 ºC / 23.0 to 212.0 ºF *(will be reduced to actual probe/sensor limits) |
| Compatibility/System Requirements | Android |
| Download Information | Hanna Lab App is available free from the Play Store or App Store |
| Ordering Information | HI11102 (HALO) is supplied with storage solution, cleaning solution, pH 7.01 buffer solution, pH 4.01 buffer solution, battery, quality certificate and instruction sheet. |
