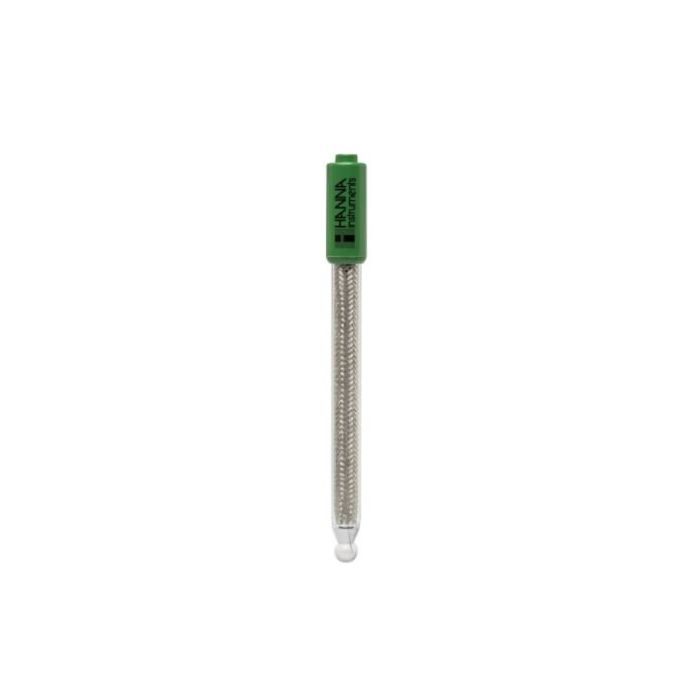

Half-Cell pH Electrode with BNC Connector (glass) - HI2111B
€158.00
In stock
The HI2111B is a glass body pH half-cell electrode with a BNC connector. This sensing electrode is made with high temperature glass and is to be used in conjunction with a reference half-cell electrode. This design consideration is ideal for use in strong alkaline solutions as well as for general purpose measurements.
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The HI2111B uses high temperature (HT) glass, spherical bulb, and glass body.
High-Temperature Glass Formulation
The measurement of pH at very high temperatures is detrimental to the sensitive glass bulb and will shorten the life of it. A pH electrode with general-purpose (GP) glass will have a resistance of 100 megaohms at 25°C while the resistance of HT glass is around 400 megaohms at 25°C. As the HI2111B is used at elevated temperatures the resistance decreases to approach the that of GP glass. The HI2111B is suitable to use with samples that measure from 0 to 100°C.
Spherical Bulb
The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
Glass Body
The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature-dependent. The faster the electrode reaches equilibrium, the steadier the reference potential.
BNC Connector
The HI2111B uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input. Other types of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.
Specifications
Specification Name
Detail
SKU
HI2111B
Description
pH half-cell
Half Cell
–
Range
pH: 0 to 14
Recommended Operating Temperature
0 to 100°C (32 to 212°F)
Tip / Shape
spheric (dia: 9.5 mm)
Body Material
glass
Cable
coaxial
Recommended Use
general purpose, strong alkaline solutions
Connection
BNC
