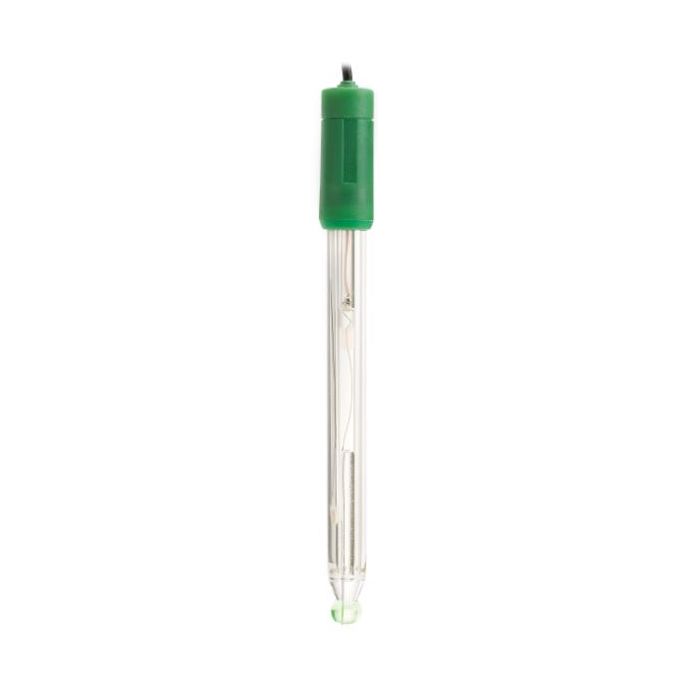

The HI1110B is a glass body, gel filled, single junction pH electrode that has a built-in temperature sensor and connects to the meter with a BNC connector. This electrode has a single ceramic junction in the outer reference cell and the spherical pH sensing portion is made with general purpose glass. This design consideration is ideal for the laboratory that does not want to refill a pH electrode.
Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.
The HI1110B uses general-purpose (GP) glass, spherical bulb, glass body, single ceramic frit, single junction and is gel-filled.
General Purpose Glass Formulation
General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use. A pH electrode with GP glass will have a resistance of 100 megaohms at 25°C and is suited for measuring pH of samples that are at ambient temperatures. The HI1110B is suitable to use with samples that are between 0 to 80°C.
Spherical Bulb
The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.
Glass Body
The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature-dependent. The faster the electrode reaches equilibrium, the steadier the reference potential.
Single Ceramic Junction Reference
The HI1110B is a single junction pH electrode. The junction also known as a salt bridge is a necessary component of the electrical circuit. The movement of ions must flow through the junction for a steady reading. The reference cell has a single ceramic frit. The ceramic is a porous material that is easily fused with the glass body and has a similar expansion coefficient. A single ceramic junction has a flow rate of 15-20 μL/hour. Other junction types are available with higher flow rates and made with different materials.
Gel Filled
The HI1110B is a glass body, laboratory pH electrode that uses a gel electrolyte. The gel-filled probe is ideal for the lab that wants maintenance-free operation other than routine cleaning and calibration. The HI1110B does not require a refill electrolyte solution.
BNC Connector
The HI1110B uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input. Other types of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.
Specification
Specification Name
Detail
SKU
HI1110B
Description
combination pH electrode
Reference
single, Ag/AgCl
Junction / Flow Rate
ceramic, single / 15-20 µL/h
Electrolyte
gel
Max Pressure
0.1 bar
Range
pH: 0 to 13
Recommended Operating Temperature
0 to 80°C (32 to 176°F) — GP
Tip / Shape
spheric (dia: 9.5 mm)
Temperature Sensor
DIN model only
Amplifier
DIN model only
Body Material
glass
Cable
coaxial; 1 m (3.3’)
Recommended Use
general purpose
Connection
BNC
