Dissolved Oxygen Meter edge® - HI2004-02
edge® Dissolved Oxygen is packed with many cutting-edge features to ensure accuracy and usability.
Digital DO Probe
edge® DO probe is highly advanced, featuring a built-in microchip that stores calibration information that is automatically retrieved by edge once the electrode is plugged in. Information stored in the electrode includes model number, serial number and calibration information including the standards used and the date and time the last calibration was performed.
Clark Type Polarographic DO Probe
edge® HI764080 DO probe has an integrated temperature sensor incorporated into the thin ½” PEI body for automatic temperature compensation of dissolved oxygen measurements. The HI764080 probe uses screw on replaceable caps with a PTFE (Polytetrafluoroethylene) membrane that is easily replaced in the field as well in the lab. The supplied HI7041S is a concentrated Potassium Chloride fill solution used with the Clark-type polarographic technology. With this technology, an external voltage is applied to the platinum cathode and silver anode to establish a current that is proportional to the concentration of oxygen in a solution.
3.5 mm Probe Input
Plugging an electrode in has never been simpler; no alignments, no broken pins, just connect the 3.5 mm plug and get started.
edge® is incredibly versatile. It can be used in a variety of ways and in a variety of environments without taking up the space of a traditional benchtop meter.
Wall Mount
Using the wall mount cradle (included), edge® can be placed on a wall, leaving zero footprint on the benchtop space. The cradle has a bbuilt-inconnector to power edge® and charge its batteries. edge's zero footprint is designed to save you valuable benchtop space.
Cradle and Electrode Holder

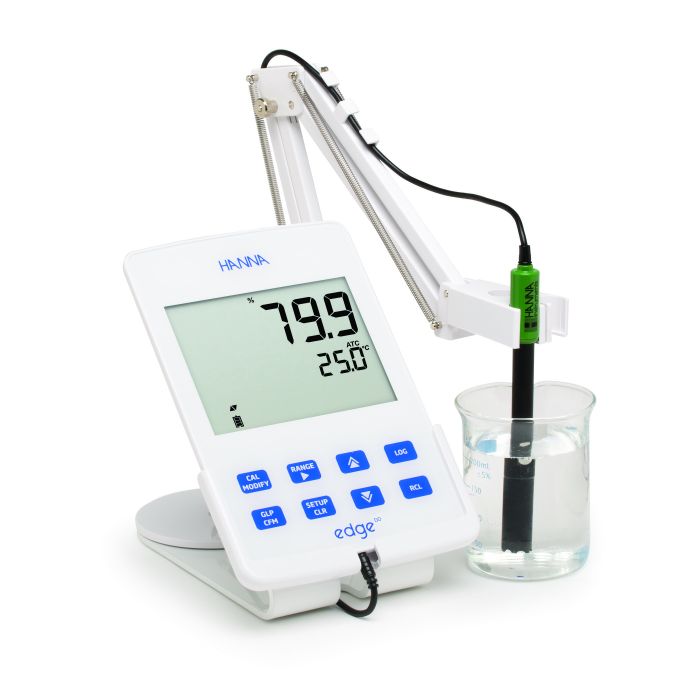

edge® is equipped with a benchtop cradle with an adjustable swivel electrode holder to charge and hold the meter securely in place at the optimum viewing angle.
edge® is incredibly thin and weighs only 8.8 oz., has an 8 hour battery life, and dual USB inputs.
Two USB Ports
edge® includes one standard USB for exporting data with a flash drive and a second micro USB port for you to connect to a computer for file export and for charging your edge® when the cradle is not available.
Data Logging
edge® allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.
Specifications
|
SKU |
HI2004-01 |
|
DO Accuracy (@25˚C/77˚F) |
±1.5% of reading or ±1 digit |
|
DO Resolution |
0.01 ppm (mg/L); 0.1% saturation |
|
DO Calibration |
One or two points at 0% (HI 7040) and 100% (water saturated air) |
|
DO Temperature Compensation |
0.0 to 50.0 ˚C (32.0 to 122 ˚F) |
|
Salinity Compensation |
1 to 40 g/L, 1 g/L |
|
DO Altitude Compensation |
-500 to 4000 m (with 100 m resolution) |
|
Temperature Range |
-20.0 to 120.0 ˚C, -4.0 to 248.0 °F* |
|
Temperature Resolution |
0.1 °C, 0.1 °F |
|
Temperature Accuracy |
±0.5 °C, ±1.0 °F |
|
DO Probe |
HI764080 DO/temperature probe |
|
Power Supply |
5 VDC adapter (included) |
|
Environment |
1 to 50°C (32 to 122°F), RH max 95% non-condensing |
|
Dimensions |
203 x 140 x 12.7mm (8” x 5.5” x 0.5”) |
|
Weight |
250 g (8.82 oz) |
|
Ordering Information |
edge® HI2004 includes benchtop docking station with electrode holder, wall mount cradle, USB cable, HI 764080 Dissolved Oxygen electrode, HI 7041S Refill electrolyte solution, 2 DO membrane caps, 2 DO membrane cap o-rings, 5 VDC power adapter, and instruction. |
|
Special Notes |
* temperature limits will be reduced to actual probe/sensor limits |
|
Warranty |
2 years |
