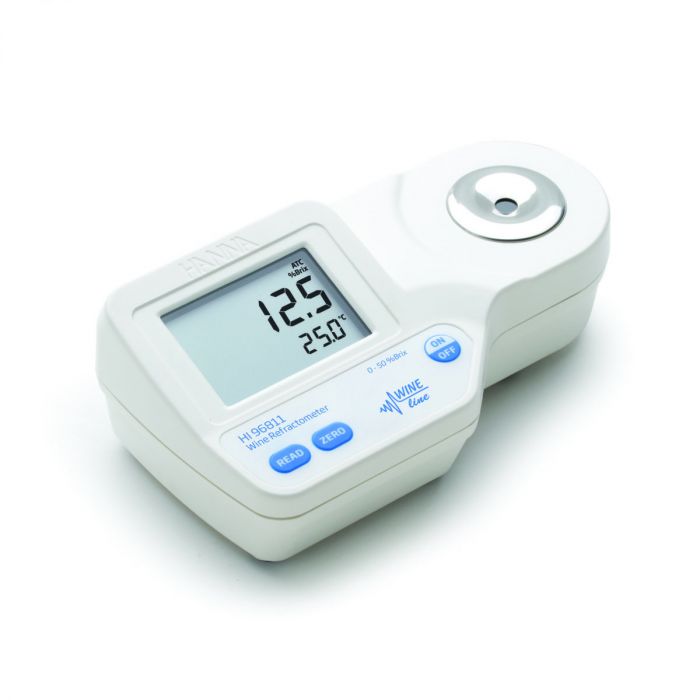

Digital Refractometer for Measurement of Sugar in Wine - HI96811
Five Instruments for Wine Analysis
Hanna offers five wine refractometers to meet the various requirements throughout the wine industry. The HI96811, HI96812, HI96813, HI96814 and HI96816 Digital Wine Refractometers are rugged, lightweight and waterproof for measurements in the lab or field.
Refractive Index
These optical instruments employ the measurement of the refractive index to determine parameters pertinent to the wine industry.
The actual measurement of the refractive index is simple and quick and provides the vintner a standard accepted method for sugar content analysis. Samples are measured after a simple user calibration with deionized or distilled water. Within seconds, the instrument measures the refractive index of the grape must. These digital refractometers eliminate the uncertainty associated with mechanical refractometers and are ideal for fast, reliable measurements.
Specifications
|
Sugar Content Range |
0 to 50% Brix |
|
Resolution |
0.1% Brix |
|
Accuracy |
±0.2% Brix |
|
Temperature Range |
0 to 80°C (32 to 176°F) |
|
Resolution |
0.1°C (0.1°F) |
|
Accuracy |
±0.3 °C (±0.5 °F) |
|
Temperature Compensation |
automatic between 10 and 40°C (50 to 104°F) |
|
Minimum Sample Volume |
100 μL (to cover prism totally) |
|
Sample Cell |
stainless steel ring and flint glass prism |
|
Measurement Time |
approximately 1.5 seconds |
|
Battery Type |
9V / approximately 5000 readings |
|
Auto-off |
after three minutes of inactivity |
|
Refractometer Light Source |
yellow LED |
|
Dimensions |
192 x 102 x 67 mm (7.6 x 4.01 x 2.6”) |
|
Weight |
420 g (14.8 oz.) |
|
Ordering information |
HI96811 is supplied with battery and instruction manual |
