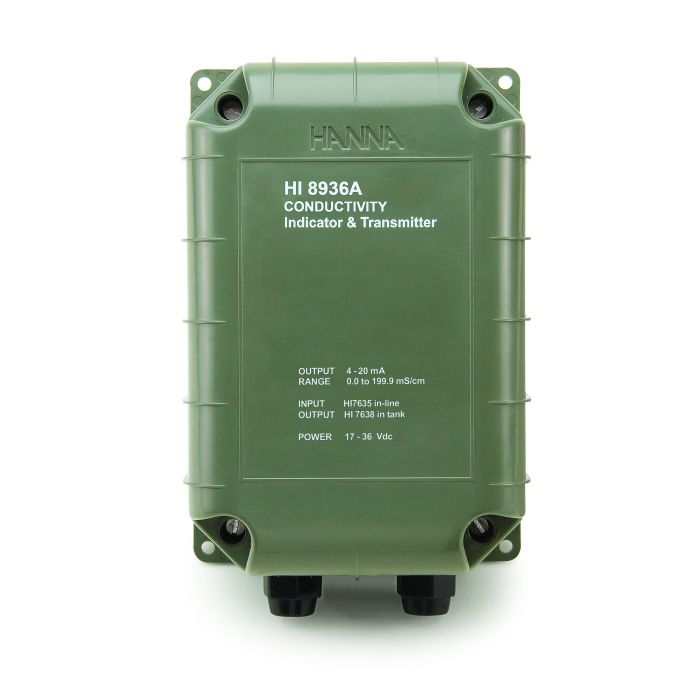

Conductivity Transmitter to use with Four-ring Probe - HI8936
- Automatic temperature compensation ensures fast, accurately compensated readings even during sudden temperature fluctuations.
- Optional backlit, LCD display for easy viewing.
Easy Installation
The HI 8936 transmitter may be wall-mounted at any convenient location close to the measurement site. The HI8936 series should be used in conjunction with the HI7635 in-line probe or HI7638 platinum probe.
Automatic Temperature Compensation
Temperature effects are compensated for by utilizing both the built-in temperature sensor on the probe and the transmitter’s ATC circuitry with a of 2%/°C.
Optional LCD
HI8936”L” versions allow easy verification and monitoring of measured values and is easier to calibrate and maintain.
Direct Probe Connection
Direct connection of the probe to the transmitter assures a positive electrical connection with no signal loss over long distances.
Specifications
|
EC Range |
HI8936A & AL: 0.0 to 199.9 mS/cm HI8936B & BL: 0.00 to 19.99 mS/cm HI8936C & CL: 0 to 1999 µS/cm HI8936D & DL: 0.0 to 199.9 µS/cm |
|
Resolution |
HI8936A & AL: 0.1 mS/cm HI8936B & BL: 0.01 mS/cm HI8936C & CL: 1 µS/cm HI8936D & DL: 0.1 µS/cm |
|
Accuracy |
±2% f.s. (excluding probe error) |
|
Calibration |
manual, two point, with offset and slope trimmers |
|
Temperature Compensation |
fixed or automatic from 0 to 50°C (32 to 122°F) with β=2%/°C |
|
Probe |
HI7635 for in-line applications (not included) |
|
Recorder |
Output 4-20 mA, not isolated, max 500 Ohm |
|
Power Supply |
without LCD: 12-30 VDC; with LCD: 17-36 VDC |
|
Overtime adjustable |
typically from 5 to approximately 30 minutes |
|
Input Impedance |
10¹² Ohm |
|
Power Supply |
BL981411-0: 12 VDC adapter (included); BL981411-1: 115/230 VAC; 50/60Hz |
|
Environment |
0 to 50°C (32 to 122°F); RH max 95% non-condensing IP Rating IP65 |
|
Dimensions |
165 x 110 x 71 mm (6.5 x 4.3 x 2.8’’) |
|
Weight |
1 kg (2.2 lb.) |
|
Ordering information |
All HI8936 models are supplied complete with instructions. |
