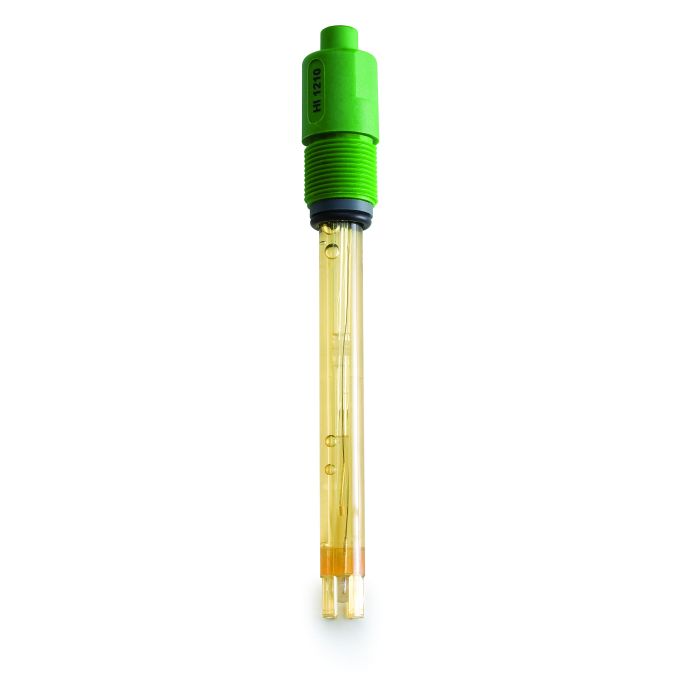

Combination pH Electrode (PEI-body) - HI1210B/5
- Combination PEI-body pH electrode.
- BNC connector allows quick and easy connection to any pH/ORP meter or transmitter.
- Built for everyday, demanding use in industrial applications.
Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Platinum sensor
Provides the best response over a wide range of applications.
Flexible instalaltion
All Hanna pH and ORP electrodes can be mounted with the Hanna inline and submersion assemblies.
Specifications
|
Body Material |
PEI |
|
Junction Type/Flow Rate |
Double, PTFE |
|
Electrolyte |
Polymer |
|
Glass Type |
(0 to 80°C/ 32 to 176°F) |
|
Max. pressure |
3 bar (43.5 psi) |
|
Overall Length |
148.5mm |
|
Temperature sensor |
No |
|
Matching Pin |
No |
|
Amplifier |
No |
|
Probe Mounting |
3/4 x 16 UNF |
|
Cable |
7-pole; 1 m (3.3') |
|
Connection |
BNC |
