The Hanna Chromium VI High Range Checker® bridges the gap between simple chemical test kits and professional instrumentation. Chemical test kits have limited accuracy and resolution since they rely upon the human eye to discern differences in color. Professional instrumentation incorporates a light source such as an LED or tungsten lamp with a filter and a light sensing detector to precisely determine absorbance and ion concentration. Professional instrumentation offers greater resolution and accuracy but can cost hundreds of dollars. The Hanna Chromium VI High Range Checker® uses a fixed wavelength LED and silicon photo detector to provide the accuracy of professional instrumentation at the affordable price of a chemical test kit.

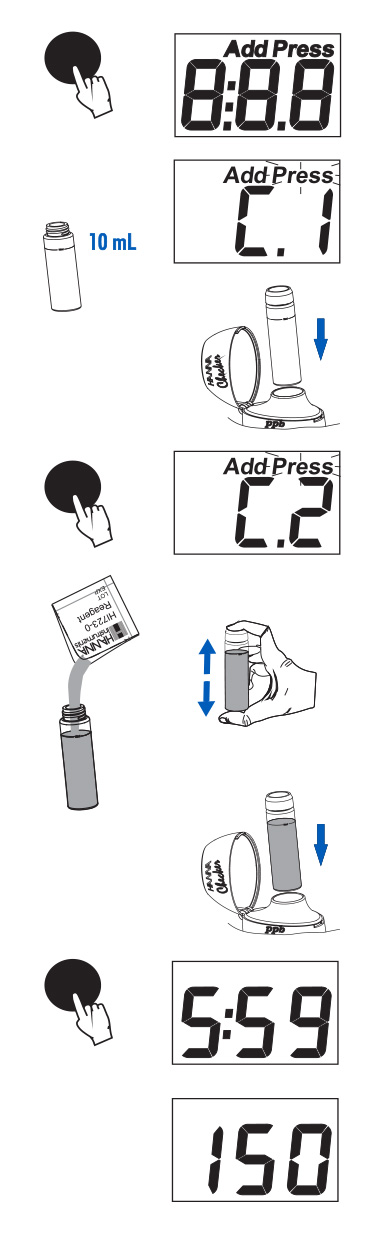

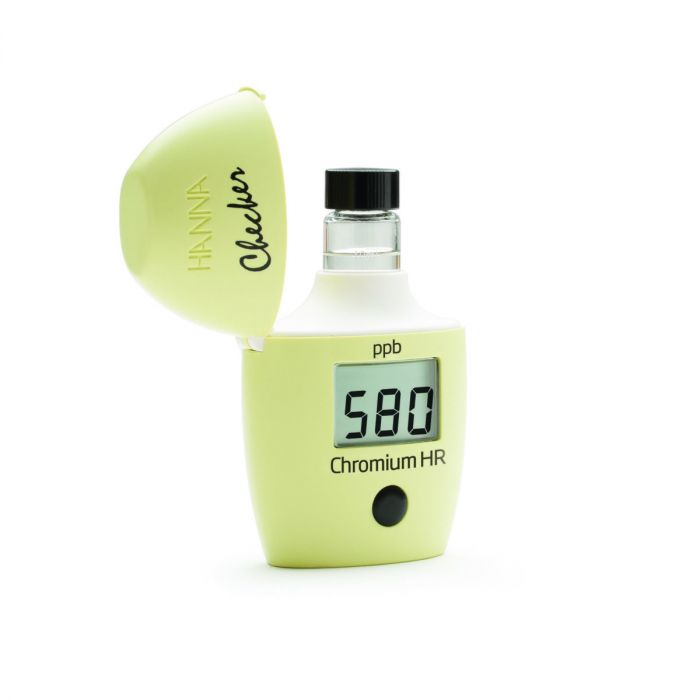

The HI723 Checker® HC (Handheld Colorimeter) provides a simple, accurate and cost-effective way to measure chromium VI. Due to its corrosion-resistant properties, hexavalent chromium plays an important part in the plating industry and cooling towers. However, due to its toxic and carcinogenic nature, chromium VI must be must be sufficiently treated prior to wastewater discharge. Designed as a more accurate alternative to chemical test kits, the HI723 provides quick, accurate results in four easy steps:
Specifications
Chromium, Hexavalent
Range
0 to 999 ppb
Resolution
1 ppb
Accuracy
±5 ppb ±4% of reading
Method
adaptation of the ASTM, Manual of Water and Environmental Technology, D 1687-92, Diphenylcarbohydrazide method
Additional Specifications
Battery Type
1.5V AAA / 10,000 hours of continuous use
Environment
0 to 50°C (32 to 122°F); RH max 95% non-condensing
Auto-off
after ten minutes of non-use
Photometer/Colorimeter Light Source
LED @ 610 nm
Photometer/Colorimeter Light Detector
silicon photocell
Dimensions
154 x 63 x 30 mm (6.1 x 2.5 x 1.2”)
Weight
196 g (6.91 oz.)
Ordering information
HI723 Checker® is supplied with (2) sample cuvettes with caps, chromium VI HR reagent starter kit for 6 tests (6 powder reagent packets) , battery, instructions and quick start guide.
