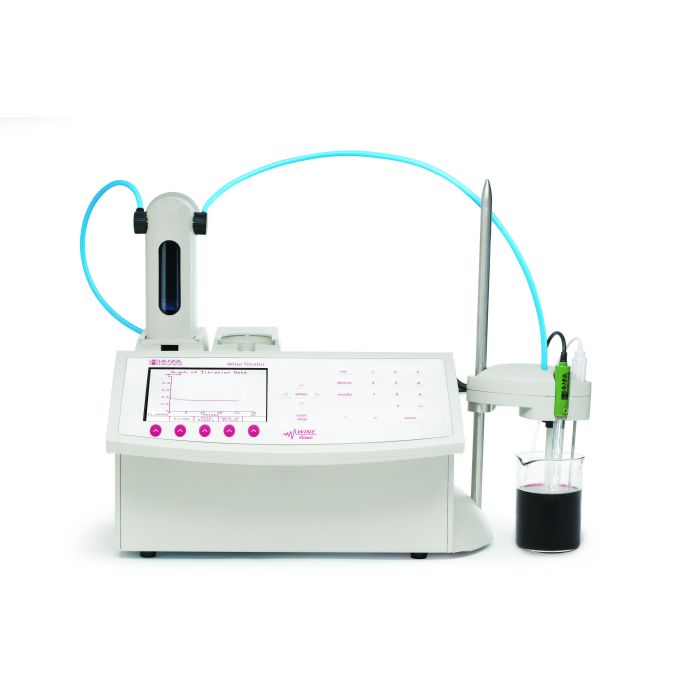

Automatic Titration System for Wine - HI901w

The Wine Titrator complements our wide range of products dedicated to efficient and accurate laboratory analysis. The HI901W potentiometric titrator can perform acid/base, redox (ORP), complexometric, precipitation, non-aqueous, argentometric, and ion selective titrations. This powerful titrator dispenses the titrant, detects the endpoint, and performs all necessary calculations and graphs automatically. In addition to titration mode, the HI901W also operates as a fully functional pH, mV/ORP, and ion selective electrode (ISE) meter. This titrator is supplied with standard wine methods or you can create your own. Methods (standard or user) can be easily transferred between titrators via USB flash drive or PC application.

Burettes and dosing system

• Exchangeable burette system With Hanna’s Clip-Lock burette, it only takes a few seconds to exchange titrants and reagents, preventing cross-contamination and saving time. • Multiple burette sizes The HI901W comes standard with a 25 mL burette but may be equipped with a 5 mL, 10 mL, or 50 mL burette. • Precision dosing pump Our unmatched 40,000 step piston driven pump is capable of dosing extremely small and precise volumes of titrant or reagent.

Data and storage

• Customizable titration reports Each titration report is fully customizable so users can ensure they are storing and filing the appropriate data required for their application and procedures. • Effortless data transfer Data can easily be transferred to a USB flash drive or PC with the Hanna HI900PC application software.

Connectivity and functionality

• Multifunctional with four working modes The HI901W functions as a titrator, pH meter, mV/ORP meter, and ISE meter. • Multiple peripherals Users can print reports directly from the titrator using a standard parallel printer. An external monitor and keyboard may be attached for added versatility, as well as an analytical balance for automatic sample mass entry for titrations.

Methods of analysis

• Customizable methods The HI901W can store up to 100 user-defined or standard titration methods. Each method may be customized and optimized for performance based on application and user requirements. • Titration method support Onsite installation, training, and customization is available from one of our Applications or Service experts. Hanna offers continued support via phone or webinar for any questions you might have along the way.

Titrator capabilities

• Dynamic titrant Dosing Dynamic dosing allows for timely and accurate titration results by relating the titrant volume dosed to the mV response from the titration reaction. This provides for larger doses near the beginning of a titration and smaller, more precise doses near the titration endpoint. • Equivalence endpoint detection Equivalence endpoint detection is critical in applications where fixed endpoints are not specified in standard methods. This endpoint indicates where the mV response from the titration is greatest with respect to the volume of titrant dosed.

• Multiple titration type Paired with the right electrode from our sensor line, our potentiometric titrator can perform acid/base, redox (ORP), complexometric, precipitation, non-aqueous, argentometric, and titrations with an ion selective electrode.
•  Signal stability timing The signal stability feature monitors when the mV response of the titration reaction stabilizes before providing the next titrant dose. This ensures reliable measurement values throughout the length of a titration.

Specifications

pH Range -2.0 to 20.0 pH; -2.00 to 20.00 pH; -2.000 to 20.000 pH Resolution 0.1; 0.01; 0.001 pH Accuracy ±0.001 pH Calibration up to five-point calibration, eight standard buffers and five custom buffers mV Range -2000.0 to 2000.0 mV Resolution 0.1 mV Accuracy ±0.1 mV Calibration single-point offset ISE Range 1•10⁻⁶ to 9.99•10¹⁰ Resolution 1; 0.1; 0.01 Accuracy ±0.5% monovalent; ±1% divalent Calibration up to five-point calibration, seven standard solutions and five user-defined standards Temperature Range -5.0 to 105.0°C; 23.0 to 221.0°F; 268.2 to 378.2K Resolution 0.1°C; 0.1°F; 0.1K Accuracy ±0.1°C; ±0.2°F; ±0.1K, excluding probe error Additional Specifications Programmable Stirrer propeller type, 100 to 2500 rpm, resolution 100 rpm Display 5.7” (320 x 240 pixel) backlit color LCD Burette Sizes 5, 10, 25, and 50 mL Display Resolution 0.001 mL Dosing accuracy ±0.1% of full burette volume Methods up to 100 methods (standard and user-defined) Logging data up to 100 titration and pH/mV/ISE reports Burette Auto-Detection burette size is automatically recognized when inserted into the unit Flow Rate user-selectable from 0.1 mL/min to 2 x burette volume/min End Point Determination single equivalence point (1st or 2nd derivative) or fixed pH/mV value Potentiometric Titrations acid/base (pH or mV-mode), redox, precipitation, complexometric, non-aqueous, ion-selective, argentometric Measurement Units user-specified expression of concentration units to suit specific calculation requirements Real-Time & Stored Graphs mV-volume or pH-volume titration curve, 1st derivative curve or 2nd derivative curve; pH mode, mV mode or ISE mode: pH/mV/concentration versus time USB Host (Side) flash drive compatibility for transfer of methods and reports GLP  Comformity instrumentation data storage and printing capabilities Languages English, Portuguese, Spanish Operation Environment 10 to 40°C (50 to 104°F), up to 95% RH Power Supply 100-240 VAC "-01" models, US plug (type A) "-02" models, European plug (type C) Dimensions 390 x 350 x 380 mm (15.3 x 13.8 x 14.9 Dimensions 390 x 350 x 380 mm (15.3 x 13.8 x 14.9 in) Weight approximately 9 kg (20 lbs.) with one pump, stirrer and sensors Ordering information HI901W-01 (115V) and HI901W-02 (230V) includes titrator with one analog board, overhead propeller stirrer with stand, 25 mL glass burette, dosing pump, temperature sensor, USB cable, USB flash drive and PC software.
