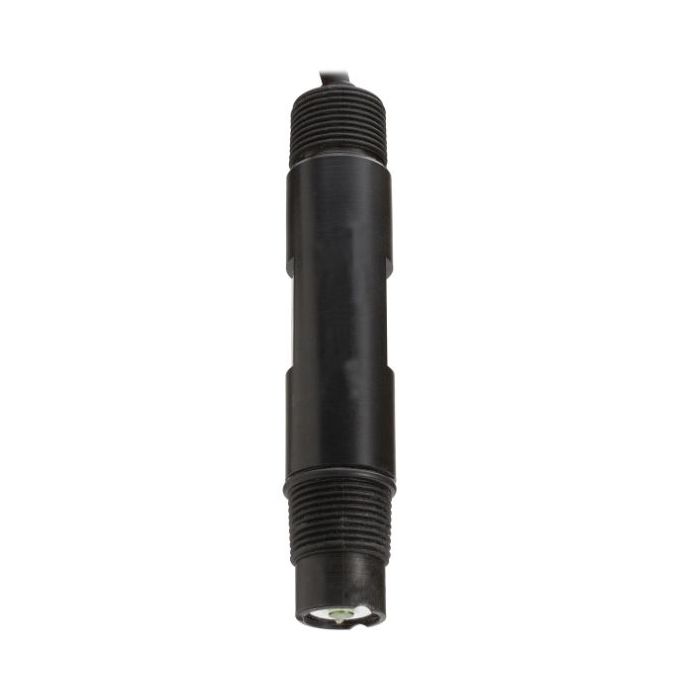

AmpHel® Flat-tip pH Electrode - General Purpose, 10m Cable
This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, general purpose glass, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.
- Flat-tip pH electrode.
- General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
- Built for everyday, demanding use in industrial applications.
Flat tipped pH electrode
Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
Specification
| Specification Name | Detail |
|---|---|
| SKU | HI6100410 |
| Range | pH: 0-13 |
| Tip Shape | Flat |
| Body | PVDF |
| Junction | Double, PTFE |
| Glass Type | GP (-5 to 80°C) |
| Electrolyte | Polymer |
| Matching Pin | Yes |
| Amplifier | No |
| Temperature Sensor | No |
| Max Pressure | 6 bar (87 psi) |
| Connector | BNC |
| Cable | 10m |
| Warranty | 6 months |
