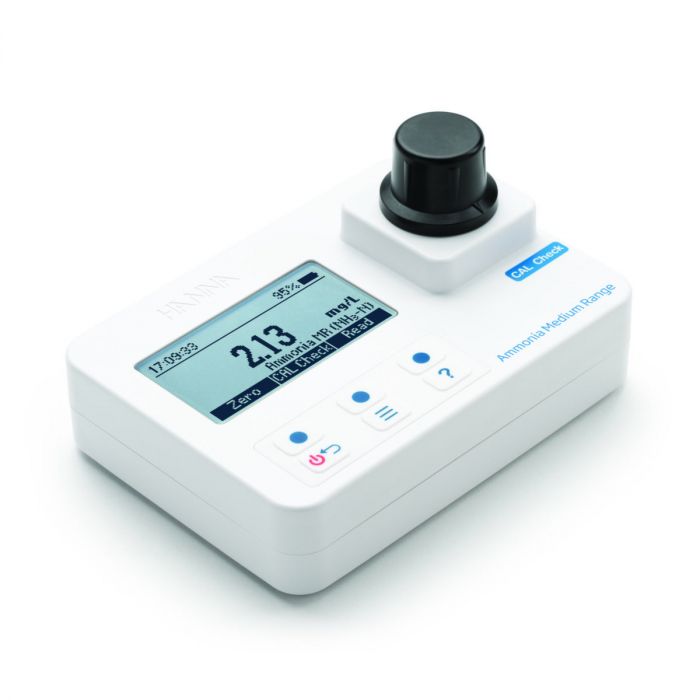

Ammonia Portable Photometer (MR) - HI97715
Better Features for Better Testing

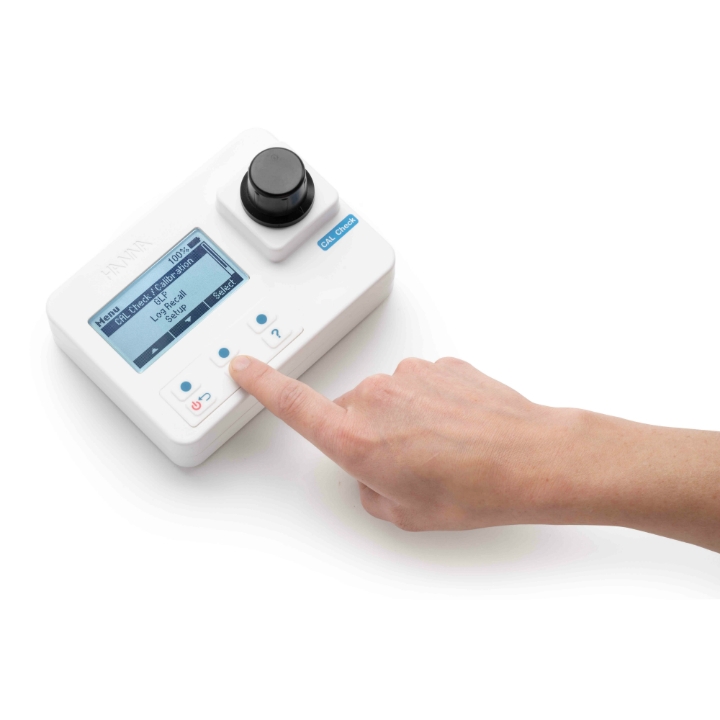

Let your photometer guide you through setup, calibration, and testing with on-screen tutorials and animations so you always know the next step. Simply access Tutorial Mode at any stage in the setup or measurement process with the dedicated help key.
The auto-off feature prolongs battery life for peace-of-mind and energy savings if the meter is accidentally left on.
When the battery level is below 10%, a warning symbol will blink to indicate low battery condition. When low battery power may affect your results, the meter will shut down to avoid erroneous readings caused by low battery level.
Data Logging
Missed a measurement? No need to worry because your photometer will automatically log the last 50 measurements. The results can be viewed instantly using the Log Recall Menu.
CAL CheckTM Validation
Hanna’s exclusive CAL CheckTM feature provides a stress-free, straightforward way to ensure your photometer is working properly. Simply insert the certified CAL CheckTM standards and let your meter guide you through validation. If your photometer is out of specification for any reason, simply calibrate to your standard.
Each HI97715 is supplied with:
- Sample cuvette (2 pcs.)
- Sample cap (2 pcs.)
- Plastic stopper (2 pcs.)
- Alkaline batteries: 1.5V AA (3 pcs.)
- Instruction manual
- Meter quality certificate
Each HI97715C is supplied with:
- Sample cuvette (2 pcs.)
- Sample cap (2 pcs.)
- Plastic stopper (2 pcs.)
- A ZERO - CAL CheckTM Cuvette A
- HI97715B - CAL CheckTM Cuvette B for Ammonia MR
- Cloth for wiping cuvettes
- Alkaline batteries: 1.5V AA (3 pcs.)
- Instruction manual
- Meter quality certificate
- CAL CheckTM standard certificate
Specifications
| Specification Name | Detail |
|---|---|
| sku | HI97715 |
| Ammonia, MR Range | 0.00 to 10.00 mg/L (ppm) |
| Ammonia, MR Resolution | 0.01 mg/L |
| Ammonia, MR Accuracy | ±0.05 mg/L ±5% of reading |
| Ammonia, MR Method | Adaptation of the ASTM Manual of Water and Environmental Technology, D1426 Nessler method |
| Light Source | light emitting diode |
| Light Detector | silicon photocell |
| Bandpass Filter Bandwidth | 8 nm |
| Bandpass Filter Wavelength Accuracy | ±1.0 nm |
| Logging | 50 readings (auto logging) |
| Power Supply | Alkaline 1.5 V AA (3 pcs.) |
| Battery Life | > 800 measurements (without backlight) |
| Auto-off | After 15 minutes of inactivity (30 minutes before a READ measurement) |
| Environment | 0 to 50 °C (32 to 122 °F); 0 to 100% RH, non‑serviceable |
| Dimensions | 142.5 x 102.5 x 50.5 mm (5.6 x 4.0 x 2.0") |
| Weight | 380 g (13.4 oz.) |
